Removal
1. Open glass panel approximately half-way.

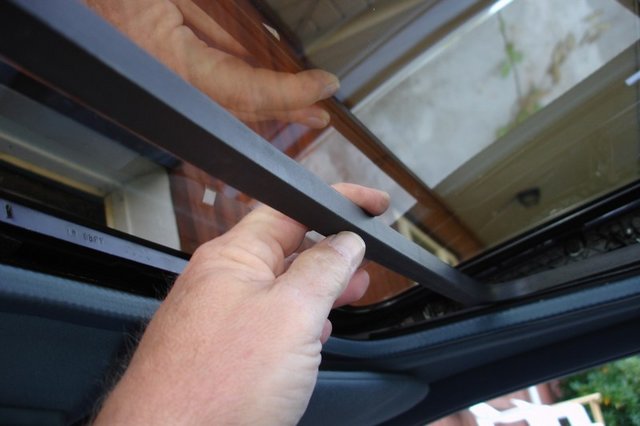

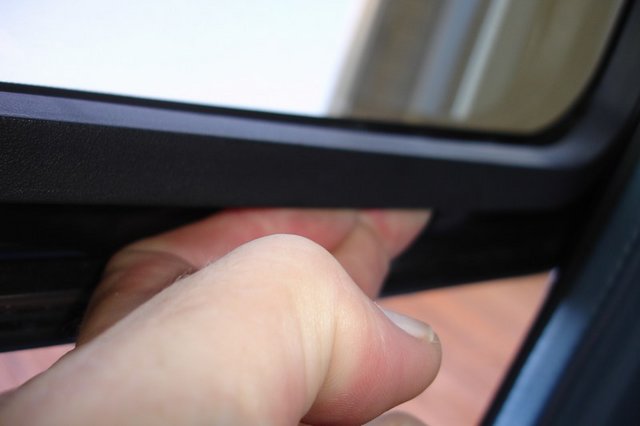

2. Unsnap the halo from glass panel assembly.
3. Raise glass panel to the vent position.
4. Slide halo fully rearward.

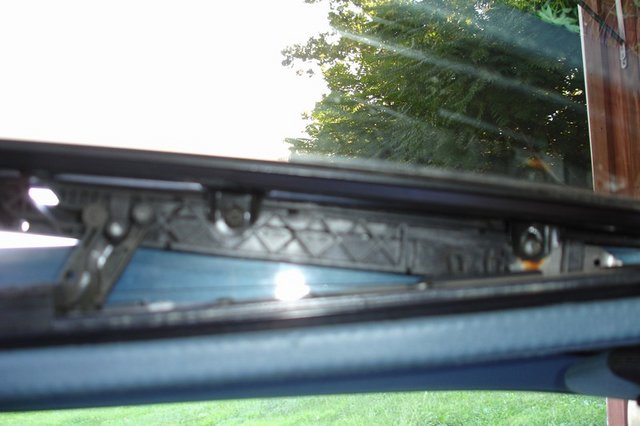

5. Remove six glass panel retaining screws (three per side).

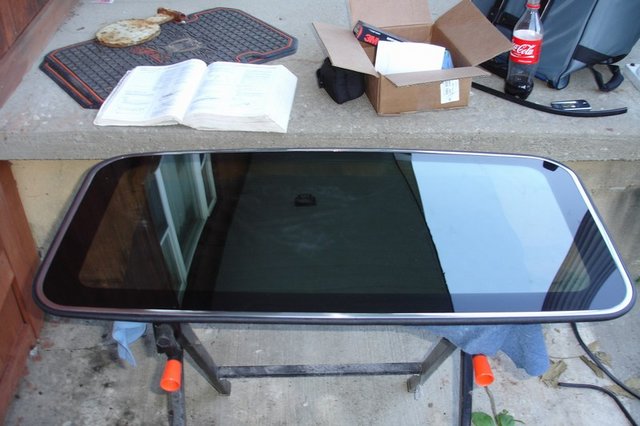

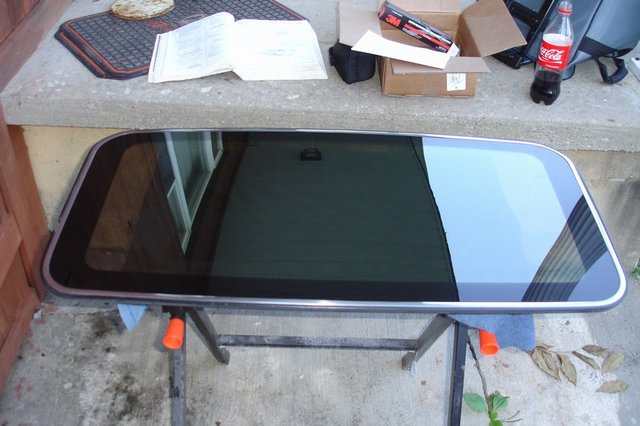

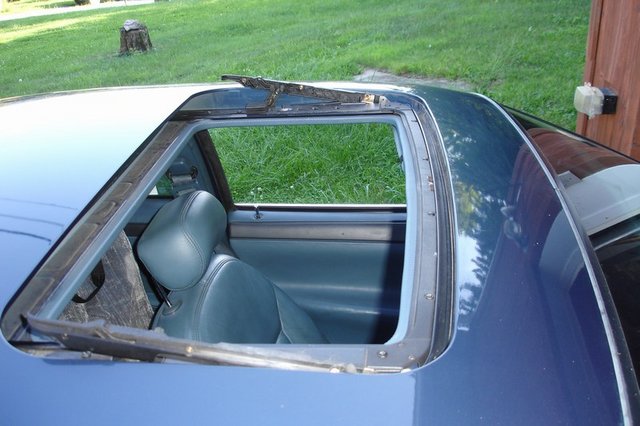

6. From outside of vehicle, remove glass panel.
Installation
1. Operate moon roof system to lower glass lifter arms approximately one-quarter of the way. This relieves tension on the cables, enabling lifter arms to move for easier glass positioning and for installation of the glass panel retaining screws.
2. Position sliding glass panel. Install six retaining screws. Finger-tighten center screws (for glass panel adjustment). Tighten remaining screws to 2-4 N-m (18-35 lb-in).
3. Lower glass panel from the vented position to slightly below the roof panel sheet metal surface (12mm (1/2 inch) maximum), then raise it to the closed position.
CAUTION:
To prevent halo damage, do not allow glass panel to travel rearward during this operation.

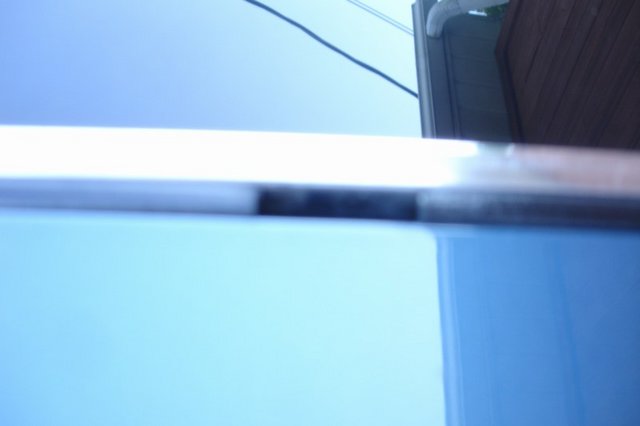

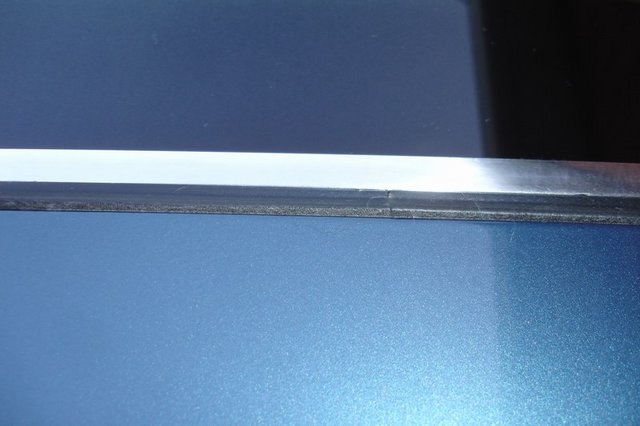

4. Check and adjust the glass panel as required (flush to - 1.0mm low at the front and flush to +1.0mm high at the rear).
5. Tighten all retaining screws to 2-4 N-m (18-35 lb-in).
6. Slide halo forward.
7. Open the moon roof approximately one-quarter of the way.
8. Install halo to glass panel.
